MODEL
|
RG-6525
|
|
Sealing Type
|

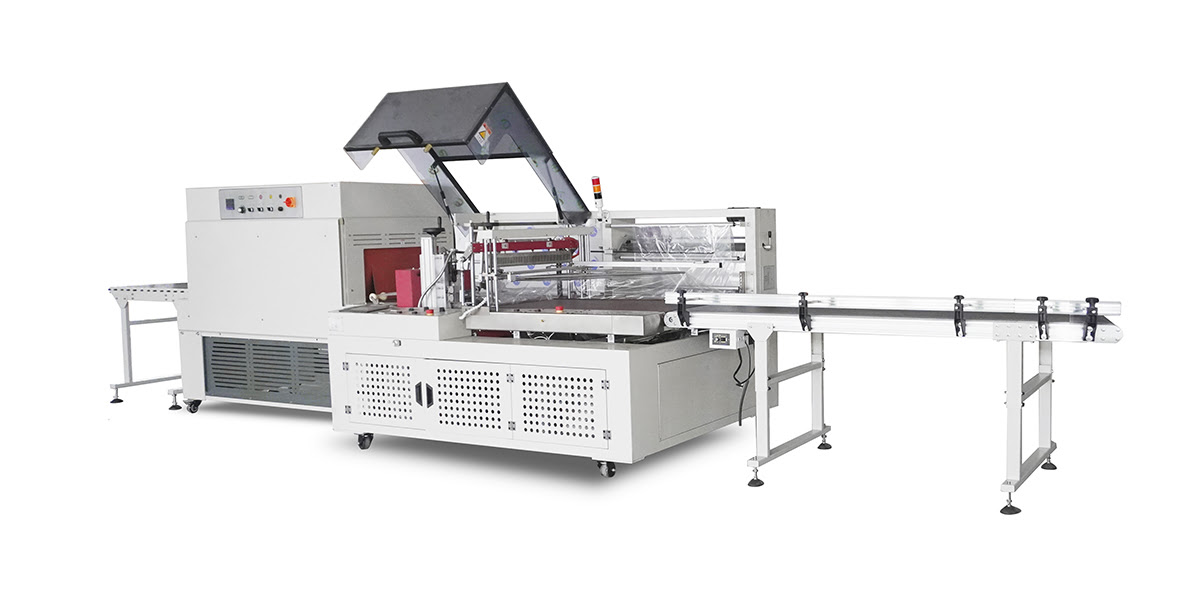

Full Cover Side Sealing Machine 邊封全封閉式
|
|
Installed Power
|
220V/380V; 50-60HZ; 1Phase/3Phase
|
|
Packing Capacity
|
15-35 packs per minute (depends on product size)
|
|
Sealing Height
|
220MM
|
|
Packing Width
|
600MM
|
|
Product Size
|
Width+Height≤650mm; Length: Infinite. 長度不限
|
|
Film Type
|
Center Folded POF Film POF對折膜
|
|
Max Film Roll Size
|
530MM (Width) X 280MM (Outer Diameter)
|
|
Power Consumption
|
1.5 KW
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Machine Material
|
Carbon Steel
|
|
Sealing Machine Dimensions
|
2250 X 1450 X 1450 MM
|
|
Sealing Machine Weight
|
740KGS
|
|
MODEL
|
RT-6030
|
|
Installed Power
|
220V/380V; 50-60HZ; 1Phase/3Phase
|
|
Oven Size
|
1500MM (L), Entrance 600(W) X 300(H) MM
|
|
Conveyor Speed
|
Variable
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Rated Power Consumption
|
7 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
1810 X 980 X 1560 MM
|
|
Tunnel Weight
|
500KGS
|
